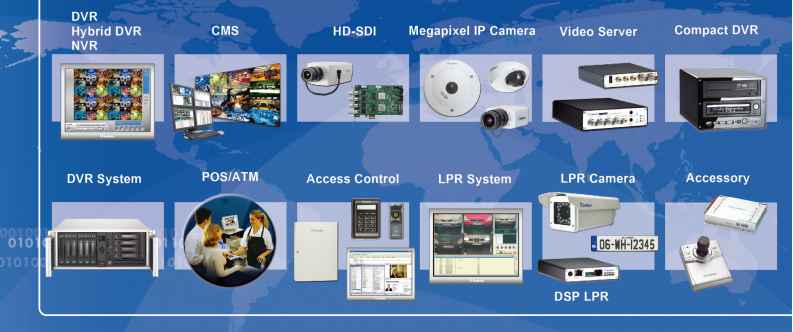

32 channel DVR / Hybrid DVR / NVR / HD-SDI 128 channel GV-Recording Server

Full Featured 32-ch NVR for GeoVision IP Cameras

Free

www.geovision.com.tw

Taiwan

GeoVision, Inc. 9F., No. 246, Sec. 1, Neihu Rd., Neihu District, Taipei 114, Taiwan T: +886-2-8797-8376 F: +886-2-8797-5861 sales@geovision.com.tw http: www.geovision.com.tw

USA Vision Systems, Inc. 9235 Research Drive Irvine. CA 92618. USA T: +1-949-583-1519 F:+1-949-583-1522 sales@usavisionsys.com http: www.usavisionsys.com

Europe I Czech

Europe Vision Systems s.r.o.

Pod vinici 2028/20 143 01 Praha4, Cesl<a Republika T: +420-225-371-121 F: +420-225-371-131 sales@geovision.eu hftp: ViViVi.geovision.eu

Japan

GeoVision Japan Inc.

Tomioi<abashi BIdg. 5F, 2-6-11 Fukagawa Koto-ku, Tokyo 135-0033 Japan T: +81-3-5639-9355 F: +81-3-5639-9356 saies@geovision.co.jp http: www.geovision.co.jp

China

GeoVision Technology (Shanghai) Co., Ltd

Room 504, 5/F, NO.700 EastYanan Rd. Shanghai 200001, China T: +86-21-6217-3366 F: +86-21-6217-0023 sales@geovision.com.cn http: www.geovision.com.cn

Brazil

GeoVision do Brazil

Av. Brigadeiro Luis Antonio,

2729 Si.910 Jardins,

Sao Pauio, SP.

Brasii Cep:01401-000

T: +55-11-24767919

F: :+55-11-24767918

contatos@geovision.com.tw

http: www.geovision.com.tw

GeoVision is a member of

OnVIF * PSIA

Full HD IP Speed Dome

OnVIF

GV-SD220

20x Optical Zoom, 12x Digital Zoom

25/30fps@1080p, 50/60 fps@720p

Maximum 460 degree preset speed

H.264, MPEG4, MJPEG

2-way audio

WDR, Day/Night

Outdoor model with IP66 and Arctic temperature control

HD-SDI Solution

GV-SDI-BX100 HD-SDI Box Camera

1080P60, 1080P30, 720P60, 720P30

Low Lux, WDR

DC Drive Iris Control

C/CS Mount

RS-485 / RS-422 Remote Control

OnVIF

GV-SD200

18x Optical Zoom, 8x Digital Zoom

25/30fps@1080p, 50/60 fps@720p

Maximum 400 degree preset speed

H.264, MJPEG

2-way audio WDR, Day/Night

Outdoor (IP66 and Arctic)

GV-SDI-204

HD-SDI H/W Compression Card

4 ch Video Input

HD-SDI Video Input Format

BNC Input Connector

H.264, MPEG4, MJPEG

1080p/720p Resolution

Recording Frame Rate up to 30fps

8 DI/DO

Hybrid LPR Camera

GV-Hybrid LPR CAM10

GV-Hybrid LPR CAM 10 is a weatherproof 24/7 LPR/ANPR Infrared Hybrid camera specially designed for the reflective license plates.

Hybrid Video output: 1.3MP IP streaming + D1 CVBS

Built-in powerful IR LED illuminator with Intelligent IR technology

Built-in heater & fan, wide range of temperature operation

Weatherproof (IP66 standard)

Distance cover 3m~14m (10ft~46ft)

Featured

OnVIF psia

GV-IP Decoder Box

Decodes up to 5MP, displays up to 1080P

H.264

RTSP streaming

Sequential scan display

IR Remote Control

PTZ control

VESA mount (Optional)

GV-Pad / GV-PadT (with touch panel)

13 1280 X 800 display

Decode resolution: max 5MP

H.264

RTSP streaming

Sequential scan display IR Remote Control

PTZ control

GV-FER521

5MP

IP66

IK06

Object tracking feature

H.264 and MJPEG

Provides 360 and 180 degrees panorama view

No blind spot on live and playback view

No mechanical moving parts Virtual PTZ

Auto Pan

Playback with virtual PTZ control

GV-Recording Server

128-channel recording

Recording mode of motion detection, I/O trigger or schedule

Video gateway to GV-System, GV-Control Center and GV-MuitiView

Maximum 300-channei gateway transmission

Passive and active connection with IP video devices

Two-way audio communication with GV-IP devices through active connection

Video playback with Remote ViewLog

Bandwidth monitoring

Supports Internet Explorer, Firefox, Google Chrome and Safari

Coming soon

GV-CR420 Camera Reader

4MP resolution, 15fps

H.264, MPEG4, MJPEG

Built-in microphone and speaker

Digital D/N function

Weigand 26 RS-485 interface

13.56 MHz Mifare

GV-AS210

4 Doors

IP architecture

TCP/IP communication

Over 1,000,000 event buffer 40,000 Cards

Input X 8, Output X 8 Weigand x 4, RS-485 x 8 Weigand 26-64

GV-AS410 4 Doors

IP architecture TCP/IP communication Over 1,000,000 event buffer 40,000 Cards

Input X 16, Output X 24 Weigand x 8, RS-485 x 8 Weigand 26-64

IP Camera н.2б4 / mpeg4 / mjpeg

Fisheye

GV-FE110/111 1.3MP

GV-FE420/421 4MP

GV-FE520/521 5MP

GV-FER521 5MP

Cube

1) J -J -J

GV-CB120 1.3MP

GV-CB220 GV-CBW120 GV-CBW220

2MP 1.3MPf71ia 2МРЕДЯ

GV-BX140DW GV-BX120D GV-BX130D GV-BX220D GV-BX320D GV-BX520D

ШРЕНЗ 1.3МР1ЯШ 1.3MP 2MP ЗМР 5MP

GV-BX2400

GV-BX3400

Arctic Box

т ........

Гш.....

GV-BX120D-E 1.3MI

GV-BX220D-E GV-BX320D-E

2MPIQQ ЗМР|

GV-BX520D-E 5МР[

GV-BX120DM-E

GV-BX220DM-E

GV-BX320DM-E

змрЦБШВ

GV-BX520DM-E 5MPIQSS

Bullet

GV-BL140DW 1МРГ

GV-BL120D 1.3MP

GV-BL130D GV-BL220D

ГЗМРПЯЯПтаЖ! 2МР

GV-BL320D GV-BL520D

ЗМР ШЗШЗПЯЗ 5МР

GV-BL12QDM

1.3МР ЮЩЩЦЗ

GV-BL220DM

GV-BL320DM ЗМР[

Mini Fixed Dome

GV-MFD14QW GV-MFD120

ШРЩЗ 1-ЗМР

Mini Fixed Rugged Dome ШШ шш гтяя

GV-MFD130 GV-MFD220

1.3ЫР 2MP

GV-MFD320 GV-MFD520

3MP 5MP

GV-MDR140W GV-MDR120 GV-MDR220 GV-MDR320

шрЩШИЗВ 1.змр|ШШ!3 2мр1;Ш113В 3mpI

GV-MDR520 SMPl

Fixed Dome

GV-FD120D 1.3MP

GV-FD220D GV-FD320D

GV-FD520D 5MpD

GV-FD120DM

GV-FD220DM

1.3МРи|ЦШШШП1Ш 2MPQ

GV-FD320DM

3mpD

Vandal Proof Dome

ЕЯЯШ?!

GV-VD140DW

1мрШ!пттая1П1

GV-VD120D

1.3MP ILWJIK.MiHIrl

GV-VD220D

2МР1ШЩ!Ш1П1

GV-VD320D ЗМР

GV-VD520D

5МР1ПТЯП!!Ш1П1

GV-VD120DM 1.3MP

GV-VD220DM

2мр1122Щ31ШЗ

GV-VD320DM ЗМРГ

В1ИВО

PT/PTZ IP Cameras

Q 1 П?ЯмТШ

IP Speed Dome

t E W

GV-PT130 1.3MP

GV-PT220D GV-PT320D GV-PTZ010D 2MP 3MP DlDiQ

GV-SD010 D1[E

GV-SD010-S GV-SD022

GV-SD022-S

D1 пи

GV-SD200 2MPE

GV-SD200-S 2МРШЭШЭ

7НЯ ГШ!

GV-SD220 GV-SD220-S

2МРШЭШ1] 2МРЕЗШЭ

Video Server

Accessory for IP Cameras

GV-VS04 4-ch

GV-VS12 2-ch

GV-VS11 1-ch

GV-IRLEDT2 GV-IR LED GV-PA191

PoE Adaptoi

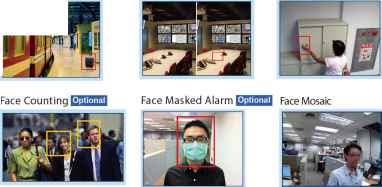

GV-Video Analytics

GV-DVR, GV-Hybrid DVR and GV-NVR provide built-in and optional Video Analytic functions. Face Detection People Counting Intrusion Alarm Tampering Alarm

Visual Automation

Focus Change Alarm

Fix Camera + PTZ Tracking

Unattended Object Detection Missing Object Detection Intelligent Search

Camera Shift Alarm

Single PTZ Tracking

Fisheye Dewarping & Tracking Wide Angle Lens Dewarping

Panorama View

DefogESB

Video Stabilization ЕШШПШ Crowd DetectionEHMlGV-Web Report ЕВШШ1 Digital Tracking I

GV-CMS

GV-Video Server GV-lVlegapixel IP Camera GV-Compact DVR

GV-DVR GV-NVR GV-Hybird DVR

GV-Control Center groups thousands of clients connection into smaller set for easier management and administration. Software and hardware configuration can be done remotely. In case of event, video signals can be routed to secondary display such as TV Wall for easy identification of the object. Of course PTZ support and two-way audio communication are also supported.

GV-Video Wall СШ lets user easily set up a video wall over multiple screens by dragging and dropping channels to desired screen divisions. User can also zoom in the channel of interest or start sequential view on the specified monitor.

GV-Center V2 Pro receives up to 19 most frequent alert of notifications via live video, video attachment and text-based messages. When alert conditions such as intrusion, fire, video lost and system abnormality occur, it can also trigger remote digital output relay, PTZ control and send SMS/ email notification to multiple recipients. Events and handling processes can be gathered and summarized as report for later inspection.

GV-Vital Sign Monitor is similar to Center V2 but using text-based notification only, which allows double size of client connections (1000 concurrent links) for centralized management.

GV-Dispatch Server balances Center V2 Pro network load, distributes client DVR requests from 25,000 GV-Systems to 50 Center V2 Pro, views real-time events, and tracks Center V2 Pro and Dispatch event logs.

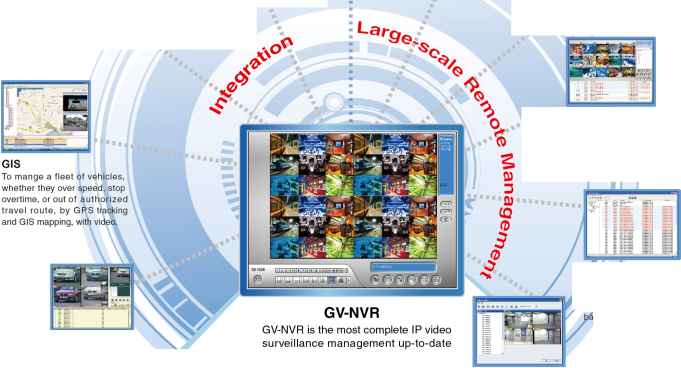

GV-GIS

GV-GIS

GV-GIS solution is designed for City Surveillance and Vehicle IViobile Surveillance. It is integrated with optional third party Google Maps and Microsoft Virtual Earth with very detailed map information even with satellite images. Fixed cameras of GV-DVR/GV-Hybrid DVR/GV-NVR can be easily placed into the map of GV-GIS for large scale projects. Vehicles which install GV-Video Server/GV-Compact DVR with GV-GPS can be monitored with video/audio/location/speed by GV-GIS. GV-GIS is able to play back the route with video. Alarm can be set for over speed, stop overtime, out of authorized region etc. Web-based interface is available for remote monitoring.

Solution

Retail Solution

GeoVision Retail solution provides a number of video monitoring solutions with visual contextual awareness that can help business owners protect their business as well as reducing shrinkage through POS and cash register integration. GeoVision People Counting function and GV-Web Report visualization tool provide business owners with value added information for business decision. Integration with EAS provides an effective solution to shorten the process of handling alarm events and to provide a customer care service. Using 360° Fisheye IP Camera, it provides a no blind spot solution for live view and playback with virtual PTZ control.

GV-NVR

POS/Retail

No complexity. It is just a solution that combines video with transaction texts. Filter and sort through the data as you search for sources of loss.

Access Control

Seamlessly Integrated with GeoVision DVR, NVR, and IP products, GeoVision Access Control System provides extra confirmation with images and Videos.

Groups thousands of clients, cameras, and I/O devices into manageable and meaningful units. Used to remotely setup and manage large number of video events and I/O devices across a network.

Video Wall

Setup a video wall across multiple screens by easy drag-and-drop. Zoom In and sequential view possible.

Center V2 Pro

Alert-based, videos and I/O events management. Alerts are sent In forms of video attachment or texts, from pre-defined emergency conditions.

Vital Sign Monitor

Text-based pre-defined emergency condition alerts, perfect even for large number of clients under limited indwidth.

To store and to read vehicle plates, for In/out control and behavior analysis Including, vehicle counting, frequency of parking, and average parking time for weekdays and holidays at specified time period.

Mobile Server

Smart phone/Pad supports through mobile server. Third-party surveillance software can also access GV-Moblle Server using RTSP protocols.

Accessory

GV-NET I/O Card V3.1

Provides 4 inputs and 4 AC/DC relay outputs.

GV-I/O 12-ln Card V3

Provides 12 digital inputs; works with GV- NET/10 Card.

GV-I/O 12-Out Card V3

Provides 12 relay outputs; vi/orks vi/ith GV-NET/10 Card.

GV-NET Card V3.1

RS-485/RS-232 interface converter.

GV-Loop Through Card

16 channels looping from capture card.

GV-IO Box 4/8E/16E

Provides inputs and AC/DC relay outputs.

GV-Relay V2

Provides 4 digital relay outputs for GV-IP Camera and Video Server.

GV-COM V2

Provides one RS-485 port through a USB port.

GV-HUB V2

Provides 4 RS-485 port through a USB port.

GV-Data Capture V3/V3E

For POS integration with optional Ethernet module. 4

Ш

GV-Battery

Power backup for GV- AS Controller and GV-IP Devices.

GV-Wiegand Capture

For Access Control Wiegand reader

GV-Keyboard V3

Controls up to 16 GV-

] Systems / GV-Control

Center.

GV-IR Remote Control

QiSS*i-3 Remote control for GV-System.

GV-Joy stick

Full control to the PTZ devices.

GV-GPS Receiver

For GIS mobile application.

GV-Access Control

GeoVision Access Control System is an easy-to-use, video-integrated, and networl<ed access control solution, suitable for home, small businesses and even multinational enterprises. The comprehensive management software pacl<age provides seamless integration with GeoVision DVR, NVR and IP products, which gives you easy access to both live and recorded video from any access event.

GV-ASManager

Controller

Comprehensive administrator / cardholder / schedule / access point management system

Manages up to 255 Controllers

Supports Microsoft Access database and SQL Server

Video integration with GeoVision DVR Series / GV-Compact DVR / GV-Video Server / GV-IP camera / 3rd-party IP camera

Real-time door status monitoring, 16-screen multiview

Web interface for historical log search with synchronized video and snapshot

GV-ASRemote

Controls multiple GV-ASManagers installed at various locations - suitable for central control monitoring purpose

Remote monitoring, remote live multiview, and remote playback and door / alarm operation

Access to log data and synchronized video playback anywhere via the Internet

Report export in Excel / Text / HTML file formats

Supports Remote Add Card Feature

Supports Visitor Card Feature

Supports Visitor Management Supports Time and Attendance Management

Product Name


Number of door

Communication

Event buffer

Number of Cards

Number of I/O Devices

Number of Readers

Extend Device Card Bit .

GV-AS100

R8-485

TCP/IP (Optional : GV-ASBox, GV-ASNet)

65,536

40,000 1,000 : Single

Total : Input x 3, Output x 2

Wiegand x 1

RS-485 X 4 (Optional : GV-ASBox) RS-485 X 2 (Optional : GV-ASNet)

GV-ASBox extend I/O (Input X 8, Output X 8)

GV-AS110

RS-485

TCP/IP (Optional : GV-ASBox, GV-ASNet)

GV-AS120

GV-AS400/410 ШШ

RD-485

TCP/IP (Optional : GV-ASBox, GV-ASNet)

65,536

65,536

TCP/IP Only / 1,000,000 65,536

40,000 1,000 : Single

40,000 1,000 : Single

Total : Input x 3, Output x 2

Total : Input x 2, Output x 1

Wiegand x 1

RS-485 x 4 (Optional : GV-ASBox) RS-485 X 2 (Optional ; GV-ASNet)

GV-ASBox extend I/O (Input X 8, Output X 8)

Wiegand x1

RS-485 X 4 (Optional : GV-ASBox) RS-485 X 2 (Optional : GV-ASNet)

GV-ASBox extend I/O (Input X 8 , Output X 8)

40,000

Total : Input X 16, Total : Input x 16,

Wiegand x 8 RS-485 X 8

26-64

26-64

26-64

GV-ASKeyPad, Cabinet, Extend I/O Device (GV-IOBOX4, 8, 16) X 4

26-64

Reader

Product Name


Communication Frequency

GV-Reader1251

Wiegand 26 RS-485

125 KHz

GV-Reader1352

Wiegand 26 RS-485

13.56 MHz

GV-R1352

Wiegand 26 RS-485

13.56 MHz

GV-RK1352

13.56 KHz

GV-GF1901

Wiegand 26 RS-485

13.56 MHz

GV-GF1902

I I

Wiegand 26 RS-485

13.56 MHz

Card / Tag Type

Card / Tag

Reading

Distance

Environment

I/O Interface

4 / 3 (cm)

-20 ~ 65°C / -4~ 149°F (IP54)

None

5/4 (cm)

-20 ~ 65°C / -4~ 149°F (IP54)

None

4/2.5 (cm)

-20°C~60°C/ -4 ~ 140 °F (IP66)

None

4.5 / 2.5cm

-20 ~ 65°C / -4 ~ 149°F (IP66)

None

5 (cm)

0 ~ 65°C / 32 ~149°F

1 Port (240V/2.5A)

5 (cm)

0 ~ 65°C / 32 ~149°F

1 Port (240V/2.5A)

Accessory

GV-ASBox

Adds network function to GV-AS100/AS110/AS120

Web interface configuration

Extendable to 8 inputs and 8 outputs (programmable) 4 outputs for lighting on/off control (energy saving)

One extra Wiegand reader port (26-64 bits)

One extra door control (Works with GV-AS100/AS110/ AS120)

GV-ASNet Add TCP/IP networking capability to GV-AS100/ GV-AS ID Cards & GV-ASTag AS110/AS120

Access GV-AS100/AS110/AS120 > 125kHz Card / Tag through Web-based interfaces . / 13.56MHz IS014443A

Support 2 units of GV-Readers and GV-GF У Card / Tag Fingerprint Readers

PB41 Push Button Switch

Push Button Switch

PB22 Push Button Switch

Electric Lock

PB21 Push Button MLSH01-0 Electromagnetic ML200SLD Electric Bolt Switch Lock

ST124SLD Electric Strike

Battery

GV-Battery

GV-LPR

GeoVision LPR/ANPR product line provides a total solution for License Plate Recognition. It provides both analog and IP solution for parking lot, logistics fleet management, traffic control ITS and police enforcement applications. The solution can seamlessly integrate with GeoVision surveillance system.

3 Argentina J Croatia

J Australia J Cyprus

Israel I I Italy Щ Slovakia Slovenia

3 Austria Belgium

i Czech Republic France

I Malaysia Mexico j South Africa Spain

g3 Brazil pCanada Hhina UChile

Germany Hong Kong India Hungary

Serbia Norway Q Poland QPortugal

Haiwan giurkey Hi UK USA

Columbia 171 Ireland Russia

IP Camera

Infrared sensor or magnetic field detector

RS232 / File export

licence plate number

USB f

Gate

GV-IO BOX

TCP/IP ,

GV-System

Billing System

Analog Camera

GV-DSP LPR

Other System Integration

GV-LPR

GV-LPR is a Windows-based license plate recognition system that supports both analog and IP cameras.

Recognizes vehicles up to speed of 125mph/200kmph

Supports up to 8 motion mode lanes, 8 I/O mode lanes or 8 GV-DSP LPR lanes

Black list and white list for different actions

Stay Time / Journey Time / Average Speed

Counter for passing vehicles and available parking space

Seamless integration with GV-Series DVR for video retrieving

Provides SDK for integration

GV-DSP LPR V3

GV-DSP LPR V3 is a DSP Linux embedded compact box for outdoor application.

Linux-based solution for 1 port traffic or mobile license plate recognition

Wide operating temperature range -20~55°C (-4~131°F)

Recognition triggered by software motion detection or I/O device

Hardware watchdog, digital watermark

Offline backup upon internet disconnection with Micro SD card

Supports USB Interface UMTS modem

Provides SDK for integration

GV-LPR Center is designed for central management of multiple GV-LPRs and GV-DSP LPRs.

Supports up to 255 GV-LPR or GV-DSP LPR clients

Central database synchronization with GV-LPR clients

Up to 16 ports per page for video live view of GV-LPR or GV-DSP LPR (255 pages max.)

Receives recognition result alarms from GV-LPR or GV-DSP LPR clients

Remote relay trigger

Remote LPR desktop to control GV-LPR clients

GV-LPR CAM 10

GV-IRCAM is a weatherproof 24/7 LPR/ANPR IR camera specially designed for the reflective license plates.

Built-in powerful IR LED illuminator

Built-in always-on blower

Weatherproof (IP66 standard)

Sun-shield

Distance cover range from 7m~25m (23ft~82ft)

GV-DVR

A Complete Lineup of DVR Card

The DVR cards are designed to especially support GV-DVR/NVR systems, to meet the surveillance industrys image standards. The selections are from 4 to 32 channels, and at resolutions ranging from GIF to High-Definition. Since the cards are specifically designed for GV-DVR/NVR system, it truly brings out the high performance + of the total solution.

GV-600B

GV-650B

GV-800B

GV-900A

m m tm

GV-1120A

GV-1240A

GV-1480A

GV-5016

Compact DVR

Compact DVR is designed to use in vehicles and confined space. It is available in regular and Anti-Vibration ACC model, suitable for shocl< and vibration in mobile environments.

H.264 video compression

4/8 channels of video, audio recording and playbacl<

*TV/VGA output for spot monitor

.Supports digital I/O

.Supports GPS (Optional)

Supports 3G/3.5G/UMTS modem (Optional)

Compact DVR 8 CH (H.264)

Compact DVR 4 CH (H.264)

GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W

1 Bay HDD 2 Bay HDD 1 Bay HDD + DVDR/W

Compact DVR 8 CH (H.264 Anti Vibration)

GV-LX8CV1 1 Bay HDD

GV-LX8CV2 2 Bay HDD

1 Bay HDD 2 Bay HDD 1 Bay HDD н DVD R/W

Compact DVR 4 CH (Anti Vibration)

GV-LX4C3V 1 Bay HDD

Design and specifications ore subject to change without notice.

GeoUision

The Vision of Security

All GeoVision products are manufactured in Taiwan. © 201 2 GeoVision Inc. All Rights Reserved.

ROHS fc c€ es DM P003 EN 2012/03

Distributed By
